Pulse Series

Home

Products

Street Lights

Pulse Series

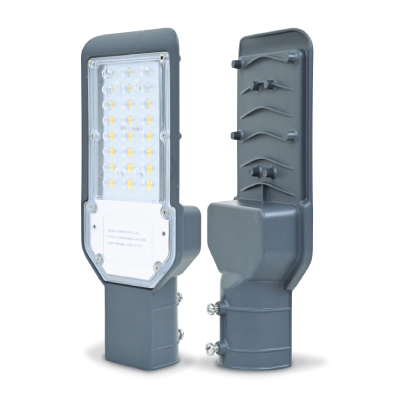

PULSE SL 24

Pulse SL 24
MODEL PULSE SL 24
Power Consumption 24 (+/-10%)
Color Temperature 3000K-6500K
LED Lumen Output 120 lm/W
Maximum Lumens 2880
CRI 70-82
Lifetime(ta=25° C) 50000 hrs
Input Voltage AC 110-290V 50/60Hz
Ambient Temperature 5°C to 35°C
Pole Entry Dia 40mm
Weight(kg) 0.4
Dimension 255 × 103 × 55 (mm)
IP Rating IP66

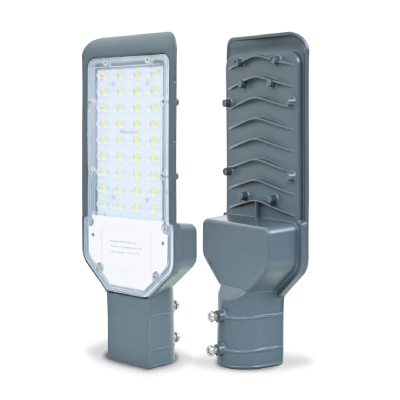

PULSE SL 36

Pulse SL 36
MODEL PULSE SL 36
Power Consumption 36 (+/-10%)
Color Temperature 3000K-6500K
LED Lumen Output 120 lm/W
Maximum Lumens 4320
CRI 70-82
Lifetime(ta=25° C) 50000 hrs
Input Voltage AC 110-290V 50/60Hz
Ambient Temperature 5°C to 35°C
Pole Entry Dia 45mm
Weight(kg) 0.6
Dimension 282 × 117 × 55 (mm)
IP Rating IP66

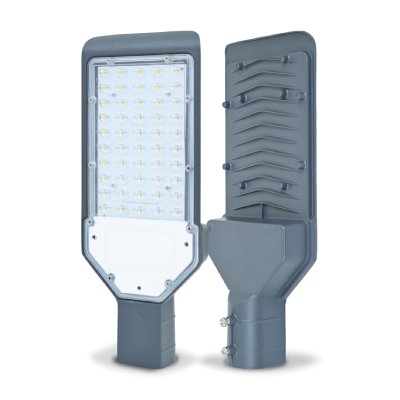

PULSE SL 50

Pulse SL 50
MODEL PULSE SL 50
Power Consumption 50 (+/-10%)
Color Temperature 3000K-6500K
LED Lumen Output 120 lm/W
Maximum Lumens 6000
CRI 70-82
Lifetime(ta=25° C) 50000 hrs
Input Voltage AC 110-290V 50/60Hz
Ambient Temperature 5°C to 35°C
Pole Entry Dia 45mm
Weight(kg) 0.7
Dimension 300 × 120 × 55 (mm)
IP Rating IP66

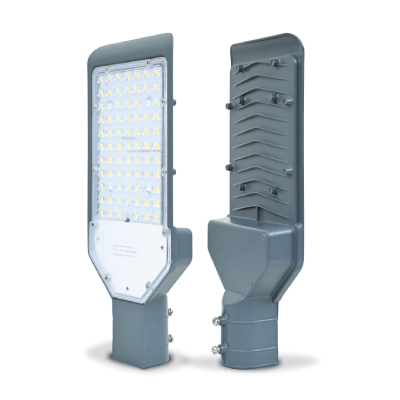

PULSE SL 72

Pulse SL 72
MODEL PULSE SL 72
Power Consumption 72 (+/-10%)
Color Temperature 3000K-6500K
LED Lumen Output 120 lm/W
Maximum Lumens 8640
CRI 70-82
Lifetime(ta=25° C) 50000 hrs
Input Voltage AC 110-290V 50/60Hz
Ambient Temperature 5°C to 35°C
Pole Entry Dia 45mm
Weight(kg) 1
Dimension 350 × 142 × 55 (mm)
IP Rating IP66

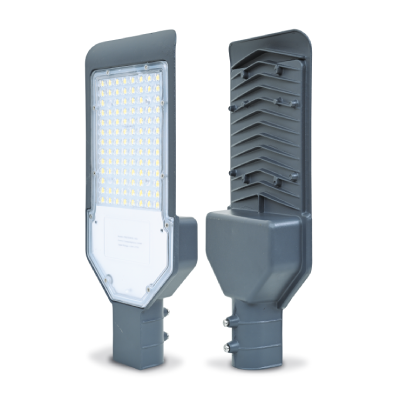

PULSE SL 100

Pulse SL 100
MODEL PULSE SL 100
Power Consumption 100 (+/-10%)
Color Temperature 3000K-6500K
LED Lumen Output 120 lm/W
Maximum Lumens 12000
CRI 70-82
Lifetime(ta=25° C) 50000 hrs
Input Voltage AC 110-290V 50/60Hz
Ambient Temperature 5°C to 35°C
Pole Entry Dia 46mm
Weight(kg) 1.3
Dimension 390 × 165 × 60 (mm)
IP Rating IP66
